Loxton 8 MK4 - Oct 18 onwards

Below you will find exploded diagrams of the Loxton 8 MK4 spare parts, this stove was available from October 2018 onwards.

This stove is different to the MK3 models as it has a silver handle and a 'hammerhead' end to the air control lever.

There are multiple images and you can use the buttons at the top to switch between them.

When you have found the correct part, click on the corresponding number and you will be taken to the part page where you can add the item to your cart.

There is also a full listing of all the parts below the diagrams.

Stove Door Brick Set

Spare Parts

Fire Bricks

Full Brick Set - 8kW MK4
M90030-02-00-99-07
In Stock, Ready to Order

£120.00

Suitable for the Loxton 8 MK4 and Churchill 8 MK4
Baffle Brick Set - 8kW MK4
M90030-02-26-99-02
In Stock, Ready to Order

£41.00

Suitable for the Loxton 8 MK4 and Churchill 8 MK4
Lox, Ch, Woodland 5kW mk4 Rear Pair Brick set
M90028-02-23-99-03
In Stock, Ready to Order

£61.00

Side/Front Brick Set - 8kW MK4
M90030-02-24-99-04
In Stock, Ready to Order

£67.00

Suitable for the Loxton 8 MK4 and Churchill 8 MK4
Universal Cast Iron Grate - Mendip Mk.3 & 4
M90065-05-01-00-00
Next Available Date: 07/06/2021

£48.00

Cast Iron Grate Extender
M90065-05-04-00-00
In Stock, Ready to Order

£17.00

Log Retainer - Loxton, Sqabox Mk3
M90065-04-00-00-00
In Stock, Ready to Order

£18.00

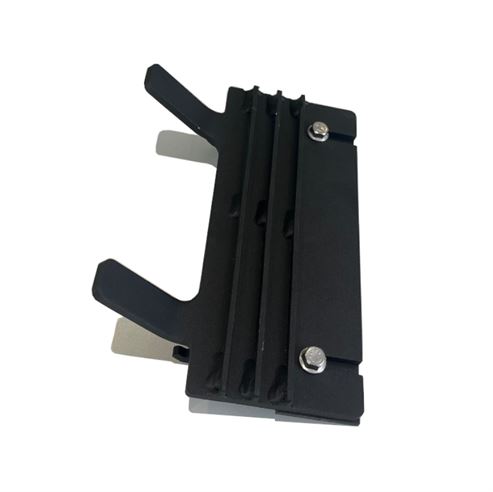

Upper Turbulence Plate - Mk.4 - 5 kW
M90500-02-64-00-04
In Stock, Ready to Order

£46.00

Rear Flue Cleaning Hatch - 5kW Mk.4
M90500-07-08-00-03
In Stock, Ready to Order

£30.00

MP MK4 Fire Brick Retaining Bracket (Front Side Right)
M90500-02-81-99-00
In Stock, Ready to Order

£14.00

Rope Seals

Loxton /Churchill 8 Door Rope Seal
M10800-06-02-01-02
In Stock, Ready to Order

£17.00

Loxton 8 MK3 Glass Rope Seal
M10800-01-02-01-02
In Stock, Ready to Order

£12.00

Ash Pan Rope Seal- Lox/Sq/Chu 4.5, 6 & 8kW - Mk.3
M90500-03-02-01-01
In Stock, Ready to Order

£12.00

Flue Collar Rope Seal - 150mm Diameter
M90800-07-10-01-00
In Stock, Ready to Order

£12.00

Furnace Door

Cast Iron Door complete
M90058-06-00-00-00
Next Available Date: 15/05/2021 subject to availability

£180.00

Suitable for; Loxton 8 Mk3 & 4, Burcott Mk2
Loxton 8 Mk3 Cast - DOOR ONLY
M90058-06-01-00-00
Next Available Date: 15/05/2021 subject to availability

£107.00

Suitable for; Loxton 8 Mk3, burcott Mk2, Loxton DS
Loxton /Churchill 8 Door Rope Seal
M10800-06-02-01-02
In Stock, Ready to Order

£17.00

Glass - Loxton 8 MK 2, 3, 4
M90800-01-01-99-00
In Stock, Ready to Order

£53.00

Suitable for; Loxton 8 Mk2, MK3 & MK4, Burcott Mk2, Loxton Double Sided stoves
Loxton 8 MK3 Glass Rope Seal
M10800-01-02-01-02
In Stock, Ready to Order

£12.00

Loxton, Sqabox 5,6,8 Mk3 Glass Clamp Kit
M90080-01-08-99-01
Next Available Date: 15/05/2021 subject to availability

£15.00

Door Handle with Fixings - MP Loxton Mk.4
M90050-06-13-99-01
In Stock, Ready to Order

£22.79

Door Hinge Rod Kit - Loxton 8, 10 Mk3
M90800-06-32-99-01
Next Available Date: 15/05/2021 subject to availability

£12.00

Loxton / Churchill MK4 Door Handle Latch Kit
M90520-06-12-99-01
In Stock, Ready to Order

£15.00

Ash Pan

Loxton 8 MK4 Ash Pan
M90800-03-00-00-01
In Stock, Ready to Order

£61.00

Ash Pan Rope Seal- Lox/Sq/Chu 4.5, 6 & 8kW - Mk.3
M90500-03-02-01-01
In Stock, Ready to Order

£12.00

Collar

Flue Collar (150mm)
M90800-07-06-00-02
In Stock, Ready to Order

£20.00

Flue Collar Rope Seal - 150mm Diameter
M90800-07-10-01-00
In Stock, Ready to Order

£12.00

Top Plate

8mm Top Plate - Loxton 8
M10800-22-01-00-03
In Stock, Ready to Order

£69.00

Flue Cover Plate - Lox/Chu 8, 10 Mk3 / MK4
M90800-07-03-00-02
In Stock, Ready to Order

£19.00

178mm ⌀

Acccessories

Ash Pan Tool - Churchill/Loxton Mk.3
M90500-03-04-00-02
In Stock, Ready to Order

£17.00

Mendip Stoves Heat Resistant Glove
M90070-48-00-00-01
In Stock, Ready to Order

£25.00

Mendip Stoves Low VOC Paint - 400ml
M90101-25-00-00-02
In Stock, Ready to Order

£31.50

Air Control

Air Box - 8 / 10kW MK4
M90820-11-07-99-01
Next Available Date: 15/05/2021 subject to availability

£215.99

This air box is suitable for the Loxton 8 / 10, Churchill 8 / 10 and Woodland Large.
Mk4 Air Control Lever & Fixings
M90500-11-34-99-01
Next Available Date: 15/05/2021 subject to availability

£34.00

Legs and Logstore

Logstore Legs (Pair)
M10831-14-06-00-00
In Stock, Ready to Order

£145.00

Suitable for Woodland Large, Loxton 8, and Loxton 10

Heat Shield

Rear Heat Shield - Inner
M90800-20-03-99-01
Next Available Date: 15/05/2021 subject to availability

£24.00

Suitable for Loxton 8, Churchill 8 and Woodland Large
Rear Heat Shield - Outer
M90800-20-06-99-01
Next Available Date: 15/05/2021 subject to availability

£30.00

Rear Heat Shield - Collar
M90800-20-10-99-00
In Stock, Ready to Order

£15.00

Blanking Plate

Blanking Plate
M90800-07-02-00-03
Next Available Date: 15/05/2021 subject to availability

£16.00

Suitable for Mendip Stoves MK4 models with 150mm flue outlet.
Flue Collar Rope Seal - 150mm Diameter
M90800-07-10-01-00
In Stock, Ready to Order

£12.00
