Riddling Grate - Series 23 & 33

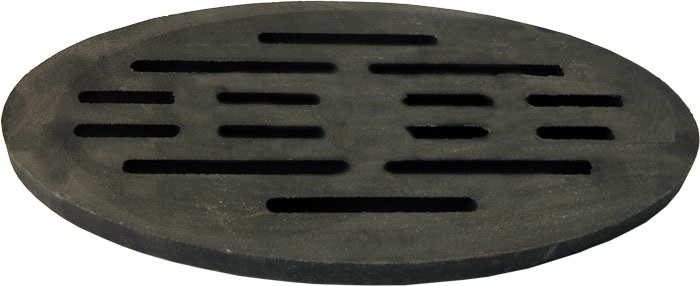

Cast Iron Riddling Grate, 180mm x 300mm; it is rugby ball in shape.

Fits the Harmony 23/33 and Stanford 23/33, R23/33 & SP23/33 stoves. It was also used in the Nestor martin FB80 insert stove however a 8mm hole will need to be drilled where there is a dimple on the underside of the grate so the riddle rod can be used on it.

This grate is situated in a riddling grate frame (23 Series - #44098, 33 Series - #42294), this positions the grate above the ash pan (23 Series, 33 Series). When the riddling bar is used the riddling grate oscillates to remove ash from the combustion chamber; this helps to maintain airflow under your fuel, which is especially important when burning anthracite or smokeless fuels.

Instructions for this part are found in the Servicing Guide IN1195

If you have damaged this heavy cast iron grate you may also need to replace the door seals, change the way in which you operate the stove, following the operating instructions, or change the fuel you are burning if using man made fuel.




£110.00

38256
