Picture of Nestor Martin Gas Flue Kit 1b - Horizontal Terminal

Nestor Martin Gas Flue Kit 1b - Horizontal Terminal

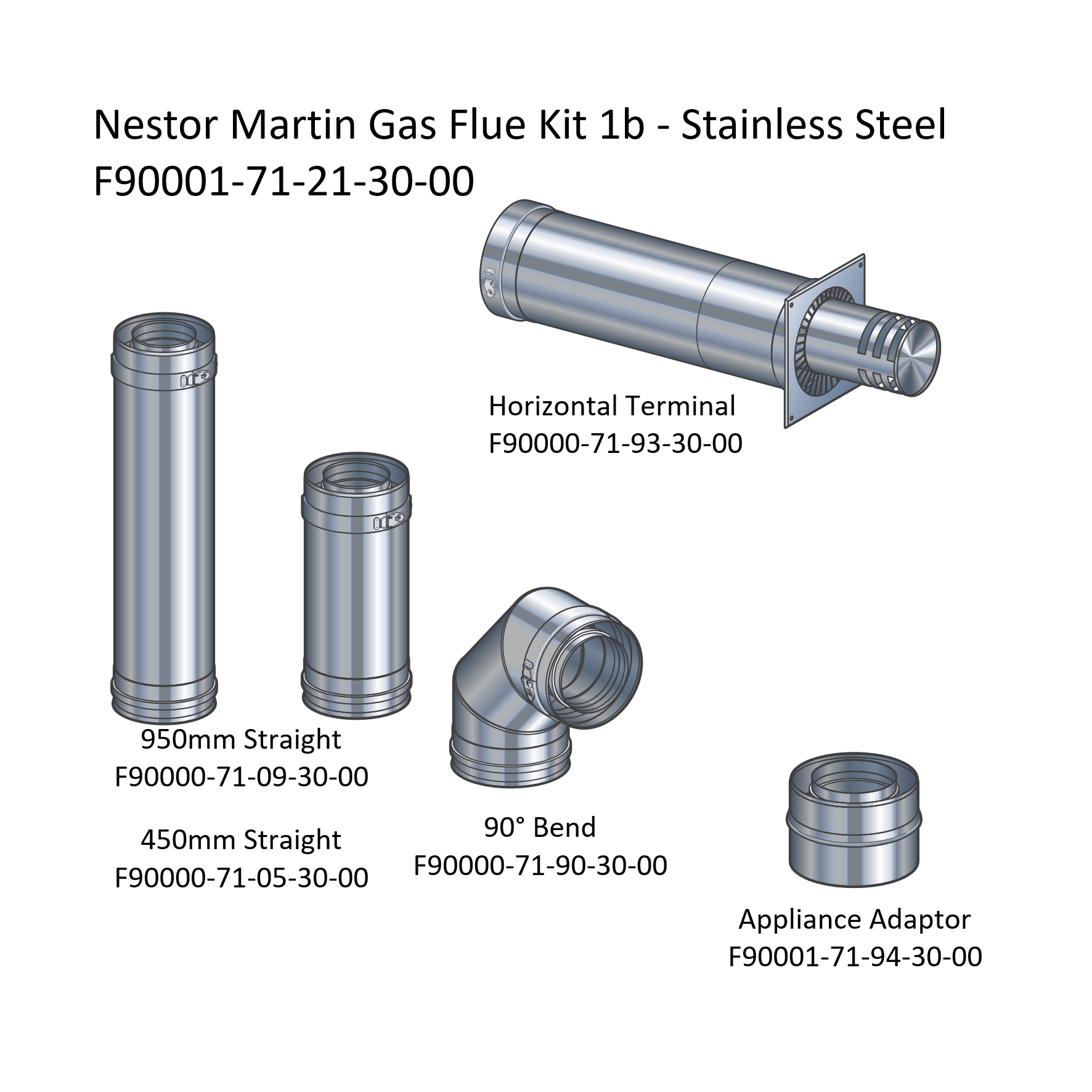

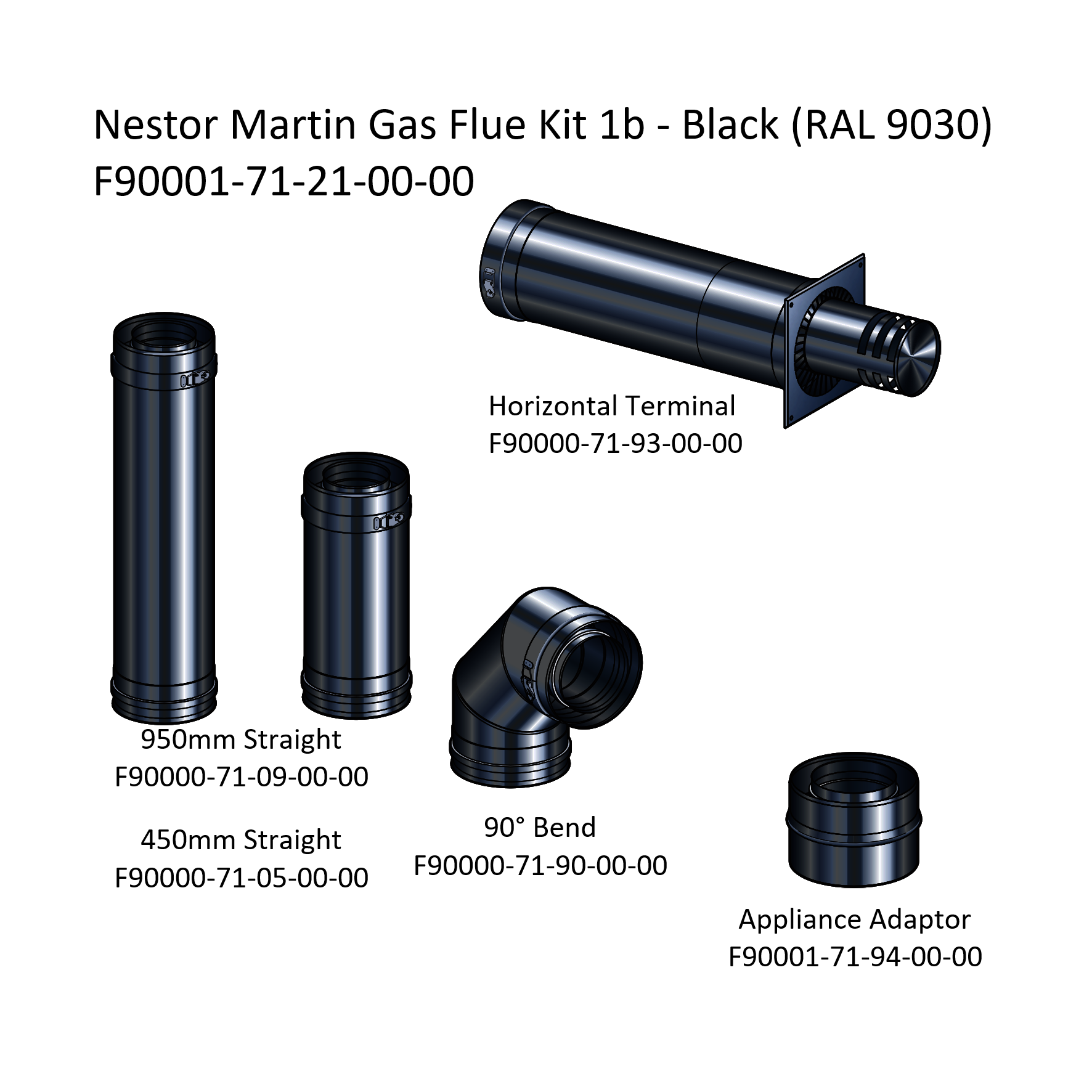

The Duo-Gas flue kit 1b for Nestor Martin Gas Stoves is available in either stainless steel or black powder coated (RAL 9030).

This kit is suitable for installation with termination through the wall using a horizontal terminal.

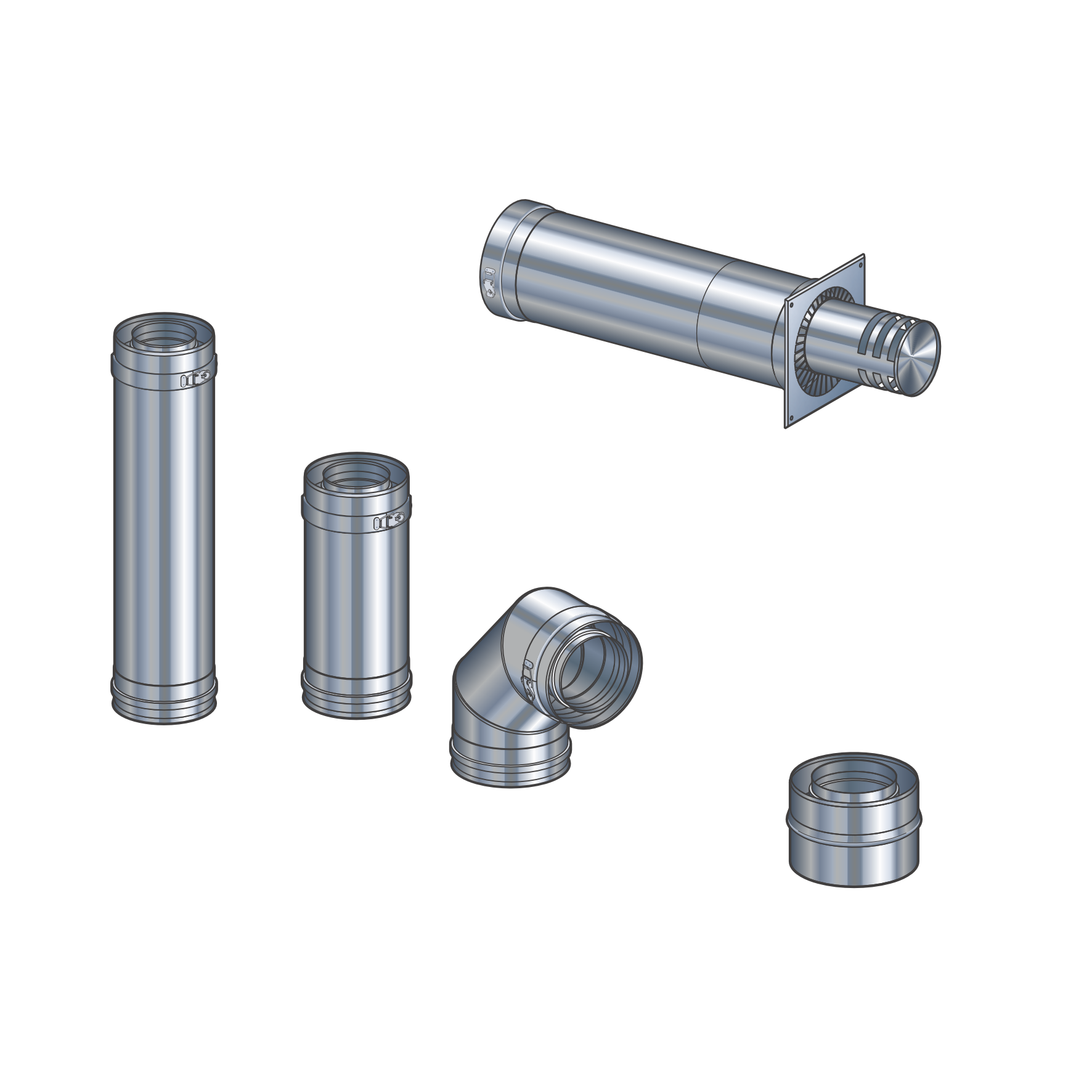

Each kit contains:

 1 x Horizontal terminal
  (F90000-71-93-30-00 / F90000-71-93-00-00)

 1 x 450mm straight
  (F90000-71-05-30-00 / F90000-71-05-00-00)

 1 x 950mm straight
  (F90000-71-09-30-00 / F90000-71-09-00-00)

 1 x 90 degree bend
  (F90000-71-90-30-00 / F90000-71-90-00-00)

1 x Appliance Adaptor
  (F90001-71-94-30-00 / F90001-71-94-00-00)


*





Products specifications

Flue outlet size 100 / 150 mm
Gas Flue Max Temperature 600° C
CE Marking 0071-CPR-23485
Designation T600 N1 W V2 L50040 O50
Inner Wall Thickness 0.4mm
Minimum Distance to Combustibles 50mm

Product documents
